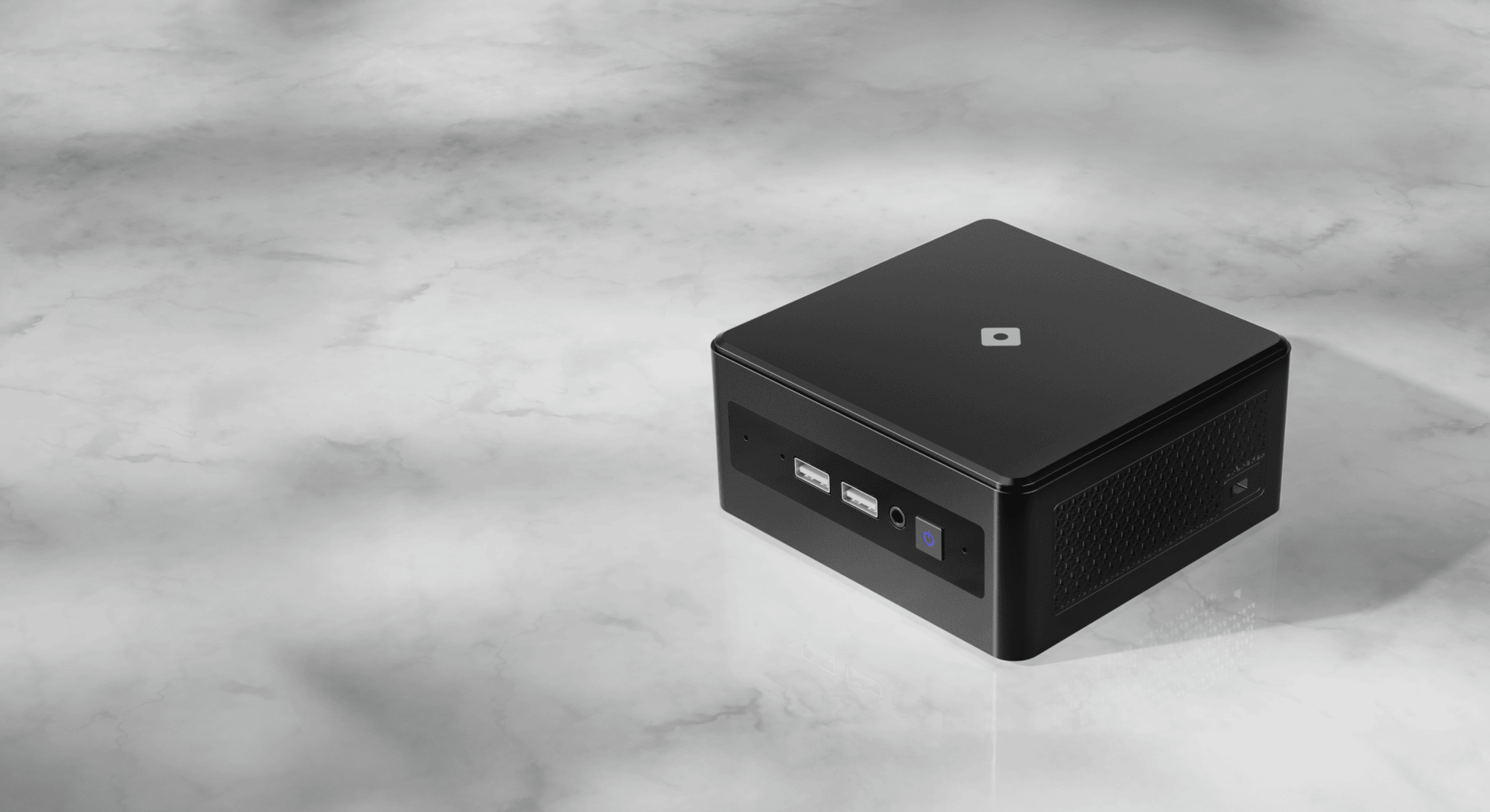

N100 Relay Core

Transform yesterday's cameras to tomorrow's intelligence. Relay Core integrates existing third-party cameras for a phased migration to cloud-managed physical security.

N100 Relay Core Overview and Specifications

Rhombus Relay Core lets organizations easily upgrade their existing cameras and gain the benefits of the Rhombus platform. With remote access, AI insights, and centralized management in a compact, easy-to-use form factor, Relay Core transforms third-party RTSP streaming cameras into a smart camera on the Rhombus console.

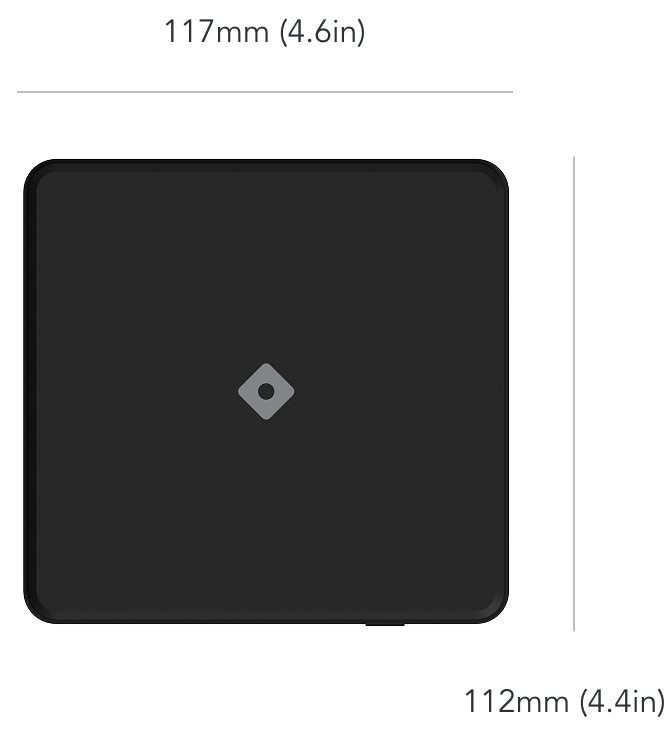

undefined camera with dimensions
Onboard Storage

2TB

Camera Storage

Up to 20 days of storage per camera¹

Networking

1x 2.5Gb RJ45

Dimensions

117mm x 112 mm x 54mm

Power Supply

12-24VDC input, 19V 120W external PSU included

Power Consumption

120W max

N100 License Options
  • View and storage only with no additional license
  • Standard Analytics with Rhombus Professional License²
  • Advanced Analytics with Rhombus Enterprise License²
  • CE, FCC, IC, UK, AUS, NZ, NDAA, TAA Compliant
    Rhombus 5-Year Warranty Included

    ¹ Days of storage and number of cameras per device can vary based on camera resolution, bitrate, and motion.

    ² Performance of Rhombus AI analytics can vary based on camera image quality and performance.

    N100 Accessories

    For more information or to purchase accessories, contact sales@rhombus.com

    Wall Mount
    Ceiling Mount
    Corner Mount
    Pole Mount
    Rack Mount
    DR20 Wall Plate

    DR20 Wall Plate

    $25

    ACC-DR20-WP

    Wall plate adapter for the DR20 Door Reader mounted over standard 1-Gang wall boxes.

    DR40 Angle Wall Mount

    DR40 Angle Wall Mount

    $25

    ACC-DR40-AWM

    30 Degree angle wall mount for DR40 Video Intercom, used to improve viewing angle. Also compatible with ACC-DR40-WP.

    DR40 Wall Plate

    DR40 Wall Plate

    $25

    ACC-DR40-WP

    Wall plate adapter for the DR40 Video Intercom mounted over standard 1-Gang wall boxes.

    Wired Temperature Probe

    Wired Temperature Probe

    $25

    ACC-ENV-TEMP

    Plugs directly into the E50 Environmental Sensor. Use for temperature monitoring of locations outside of E50 temperature range.

    Wired Water Leak Cable

    Wired Water Leak Cable

    $25

    ACC-ENV-LEAK

    Plugs directly into the E50 Environmental Sensor and detects leaks. Daisy chain multiple to reach desired length.

    Extension Rod

    Extension Rod

    $49

    ACC-ROD-40CM

    Extension rod for use with Ceiling Mounts or Arms, with standard 1.5” NPT connections on each end.

    Junction Box

    Junction Box

    $49

    ACC-R100-JB2

    Outdoor junction box with the conduit attachment for R120 and R200 camera.

    Pendant Cap

    Pendant Cap

    $49

    ACC-R100-CAP

    R120 and R200 pendant cap. Connect to Wall Arm, Ceiling Mount, or any mounting hardware with 1.5” NPT thread.

    R230 Junction Box

    R230 Junction Box

    $49

    ACC-R23-JB

    Outdoor junction box with the conduit attachment for R230 or R360 camera models.

    R230 Cap

    R230 Cap

    $49

    ACC-R23-CAP

    Connect to Wall Arm, Ceiling Mount, or any mounting hardware with 1.5” NPT thread.

    R360/R400 Pendant Cap

    R360/R400 Pendant Cap

    $49

    ACC-R3R4-CAP

    Connect to a Wall Arm, Ceiling Mount, or any mounting hardware with a standard 1.5” NPT thread.

    Universal Drop Ceiling Mount

    Universal Drop Ceiling Mount

    $49

    ACC-DCM1

    Indoor adapter for mounting all dome and fisheye cameras* to drop ceilings with 9/16" and 15/16" grids.

    Wall Arm Junction Box

    Wall Arm Junction Box

    $49

    ACC-ARM-JB

    Junction box to provide protected space between arm and bracket.

    R360 Wedge Mount

    R360 Wedge Mount

    $69

    ACC-R3-JBW

    15 Degree wedge mount/junction box, used to improve viewing angle for wall mounted fisheye cameras.

    Arm

    Arm

    $79

    ACC-R2-ARM

    Mounts a downward facing camera with Cap to a wall, or corner (with Corner Bracket) or pole (with Pole Bracket).

    Ceiling Mount

    Ceiling Mount

    $79

    ACC-R2-CM

    Pendant mount to be used with cap.

    R520 Junction Box

    R520 Junction Box

    $79

    ACC-R52-JB

    Junction box for use with R520 camera.

    Corner Bracket

    Corner Bracket

    $99

    ACC-R2-CB

    Mounts to the Arm to a wall corner.

    Pole Bracket

    Pole Bracket

    $99

    ACC-R2-PB

    Mounts the Arm to a pole.

    R500 Junction Box

    R500 Junction Box

    $99

    ACC-R5-JB

    Junction box for use with R500-series bullet cameras.

    R500 Pole Bracket

    R500 Pole Bracket

    $99

    ACC-R5-POLE

    Mounts R500-series bullet cameras to poles.

    R600 Pendant Cap

    R600 Pendant Cap

    $99

    ACC-R600-CAP

    Mount the camera to other accessories to install to ceiling or building corners.

    N100 Rack Mount

    N100 Rack Mount

    $149

    ACC-N2UA

    Connect up to three N100 Relay devices.

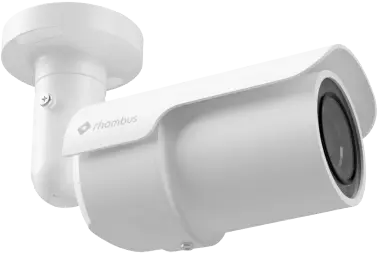

    Explore Rhombus Cameras
