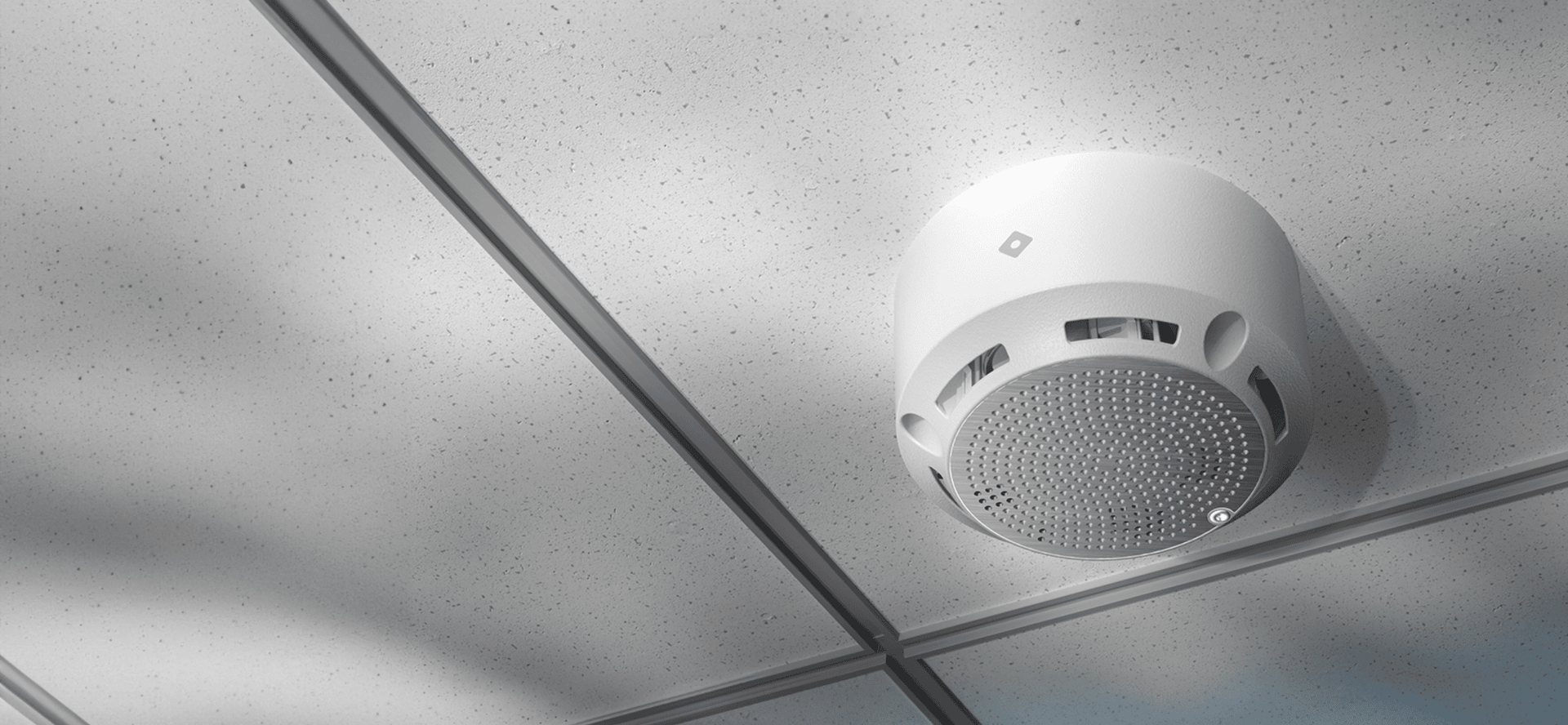

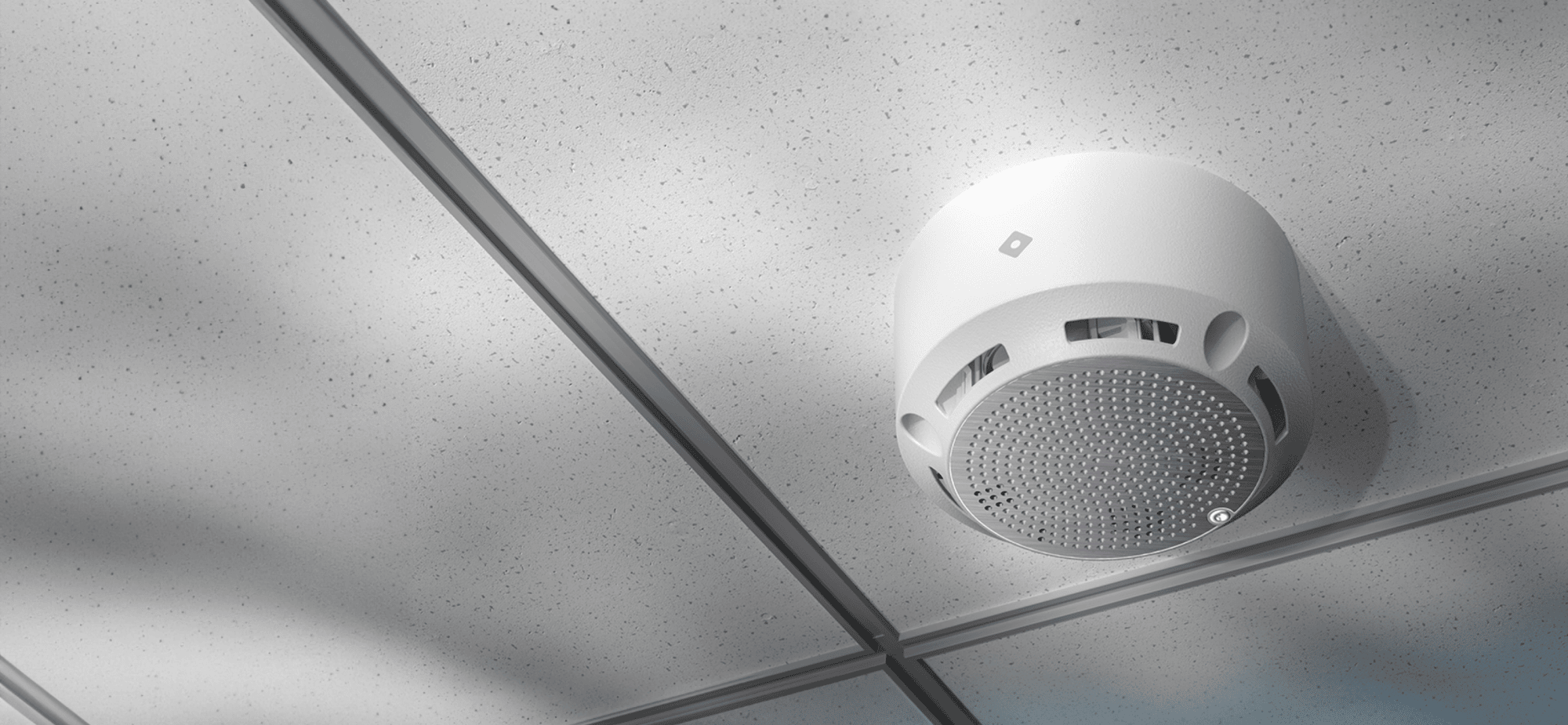

Rhombus E50 environmental sensor mounted in a school restroom is shown detecting vape clouds. The sensor's multiple environmental monitoring capabilities, including humidity sensors and temperature sensors, are highlighted as it measures relative humidity, ambient temperature, and air quality. The device showcases its ability to accurately assess environmental factors and provide crucial data for maintaining environmental health in educational settings.

E50

Promote healthy spaces, protect assets and stay compliant with advanced environmental monitoring powered by AI and specialized sensors. Expand security insights with audio detections.

Start a Free Trial View Pricing

E50 Sensor Specifications

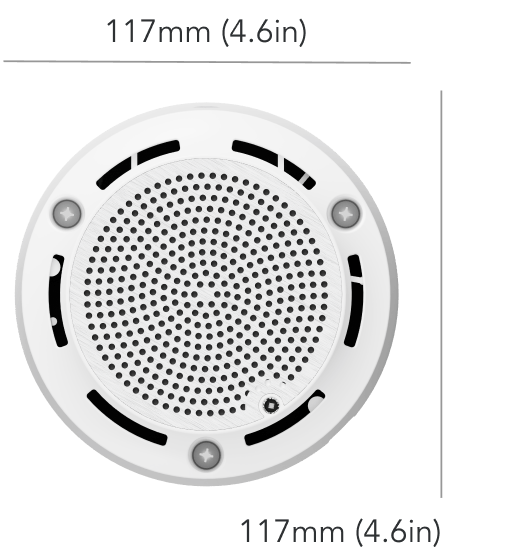

Dimensions

117mm (4.6in) X 59mm (2.3in)

Power

Power over Ethernet (POE)

Standard 802.3af for one-cable installation

Humidity Measurement

±4.5 %RH @ 25 °C, 30-70% RH, typical

±6.0 %RH @ 25 °C, 30-70% RH, max

Temperature Measurement

±0.45 °C @ 15-30 °C, 50% RH, typical

±0.70 °C @ 15-30 °C, 50% RH, max

Mounting

Screws and anchors included

Outdoor Use

For use indoors or outdoors if protected from moisture

Detection

Vape & Smoke

Temperature

Humidity

Carbon Monoxide

Carbon Dioxide

Audio Detection: Glass break, loud noise, T3/T4 alarm

Particulate matter (PM): PM1.0/2.5/4.0/10

VOC index

NOx index

Formaldehyde

Pressure

Accessories

Supports external temp probe and leak probe via jack, both optional accessories

Rhombus Sensor Network Compatible

Rhombus 10-year Warranty included

Top view of the Rhombus E50 environmental sensor for comprehensive indoor air quality monitoring. Features multiple sensors for detecting particulate matter (PM1.0/2.5/4.0/10), temperature, humidity, VOC index, carbon monoxide, carbon dioxide, NOx index, formaldehyde, pressure, glass break, and loud noise. Compact design with low power consumption for continuous environmental monitoring of various air quality factors and ambient conditions.

Download Specs

E50 Accessories

For more information or to purchase accessories, contact sales@rhombus.com

Wall Mount

Ceiling Mount

Corner Mount

Pole Mount

DR40 Angle Wall Mount

$25

ACC-DR40-AWM

30 Degree angle wall mount for DR40 Video Intercom, used to improve viewing angle. Also compatible with ACC-DR40-WP.

DR20 Wall Plate

$25

ACC-DR20-WP

Wall plate adapter for the DR20 Video Intercom mounted over standard 1-Gang wall boxes.

DR40 Wall Plate

$25

ACC-DR40-WP

Wall plate adapter for the DR40 Video Intercom mounted over standard 1-Gang wall boxes.

Wired Temperature Probe

$25

ACC-ENV-TEMP

Plugs directly into the E50 Environmental Sensor. Use for temperature monitoring of locations outside of E50 temperature range.

Wired Water Leak Cable

$25

ACC-ENV-LEAK

Plugs directly into the E50 Environmental Sensor and detects leaks. Daisy chain multiple to reach desired length.

Extension Rod

$49

ACC-ROD-40CM

Extension rod for use with Ceiling Mounts or Arms, with standard 1.5” NPT connections on each end.

Junction Box

$49

ACC-R100-JB2

Outdoor junction box with the conduit attachment for R120 and R200 camera.

Pendant Cap

$49

ACC-R100-CAP

R120 and R200 pendant cap. Connect to Wall Arm, Ceiling Mount, or any mounting hardware with 1.5” NPT thread.

R230 Cap

$49

ACC-R23-CAP

Connect to Wall Arm, Ceiling Mount, or any mounting hardware with 1.5” NPT thread.

R360/R400 Pendant Cap

$49

ACC-R3R4-CAP

Connect to a Wall Arm, Ceiling Mount, or any mounting hardware with a standard 1.5” NPT thread.

R230 Junction Box

$49

ACC-R23-JB

Outdoor junction box with the conduit attachment for R230 or R360 camera models.

Universal Drop Ceiling Mount

$49

ACC-DCM1

Indoor adapter for mounting all dome and fisheye cameras* to drop ceilings with 9/16" and 15/16" grids.

Wall Arm Junction Box

$49

ACC-ARM-JB

Junction box to provide protected space between arm and bracket.

R360 Wedge Mount

$69

ACC-R3-JBW

15 Degree wedge mount/junction box, used to improve viewing angle for wall mounted fisheye cameras.

Arm

$79

ACC-R2-ARM

Mounts a downward facing camera with Cap to a wall, or corner (with Corner Bracket) or pole (with Pole Bracket).

Ceiling Mount

$79

ACC-R2-CM

Pendant mount to be used with cap.

R520 Junction Box

$79

ACC-R52-JB

Junction box for use with R520 camera.

Corner Bracket

$99

ACC-R2-CB

Mounts to the Arm to a wall corner.

Pole Bracket

$99

ACC-R2-PB

Mounts the Arm to a pole.

R500 Junction Box

$99

ACC-R5-JB

Junction box for use with R500-series bullet cameras.

R500 Pole Bracket

$99

ACC-R5-POLE

Mounts R500-series bullet cameras to poles.

R600 Pendant Cap

$99

ACC-R600-CAP

Mount the camera to other accessories to install to ceiling or building corners.
